H410 Particle Drag Coefficient Demonstration Rig

TecQuipment manufacture “Technical teaching equipment for engineering” and one of their products needed to have enhanced features while making it quicker, easier and cheaper to manufacture.
We applied our Value Engineering expertise to achieve the following benefits:

  • Double the number of experiments that could be performed
  • Reduce the parts count by two-thirds
  • Make it so that it could be free-standing or wall mounted
  • Reduce the assembly time by one-third
  • Reduce the material content by about 15%

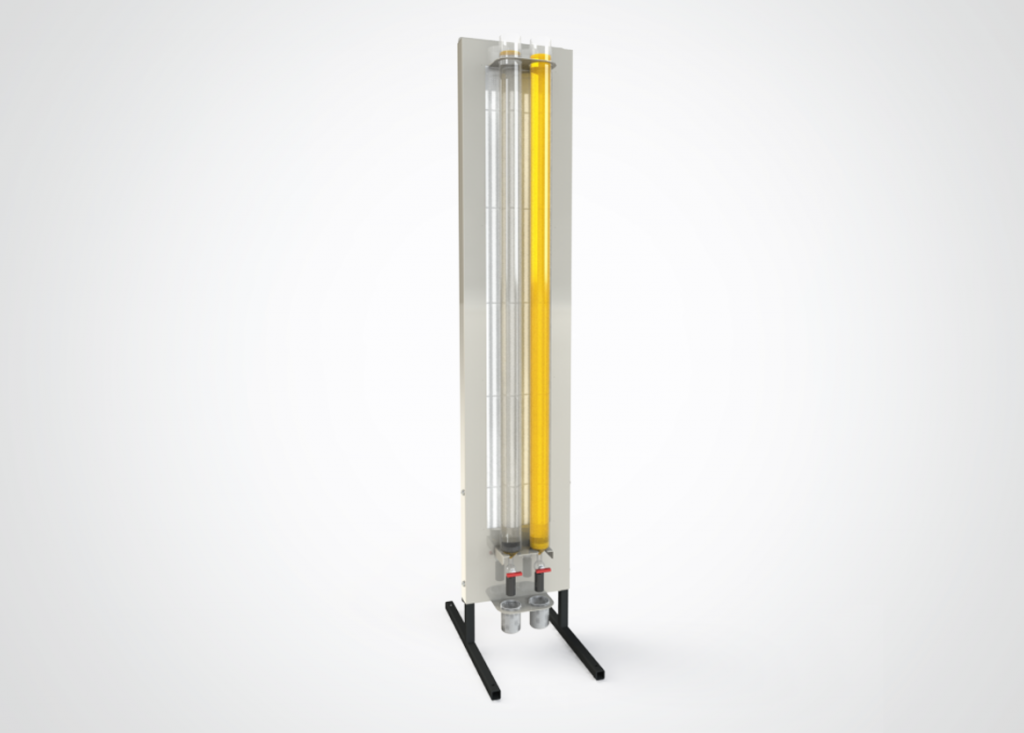

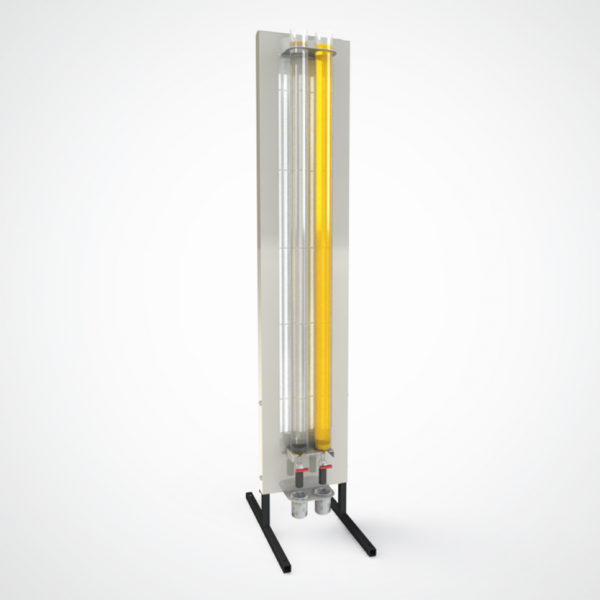

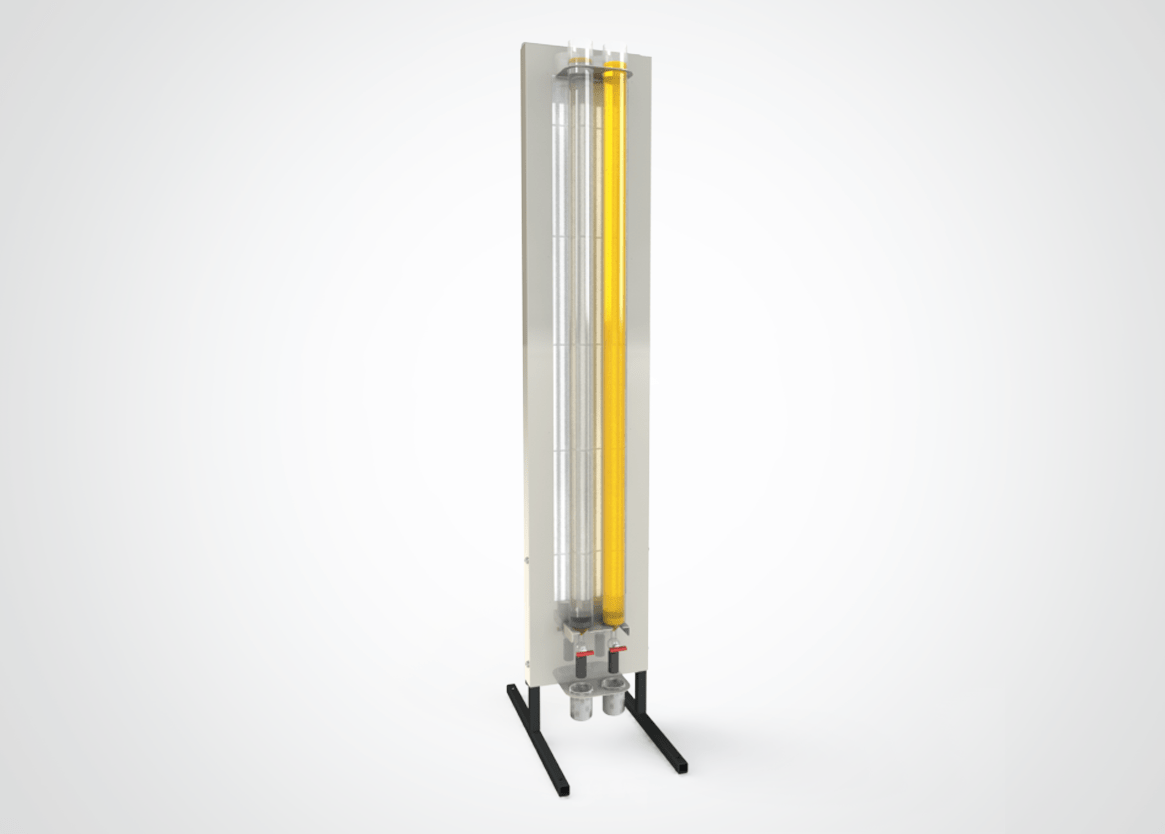

We also provided TecQuipment with photo-realistic renders of the 3D model for their catalogue and full manufacturing details.
